Hydraulic Swing Arm Die Cutting Press Clicker Machine Efficient Leather Cutting Machines for Shoe Fabric Clicking Press

Name: Hydraulic Swing Arm Die Cutting Press Clicker Machine Efficient Leather Cutting Machines for Shoe Fabric Clicking Press
Brand: DAFENG TECH
Price: 830 USD

Wholesale Hydraulic Swing Arm Die Cutting Press Clicker Machine Efficient Leather Cutting Machines for Shoe Fabric Clicking Press from china suppliers

video outgoing-inspection : Not Available

machinery test report : Provided

core components : Motor, Pump, Gear, PCB board

Cutting Precision (mm) : 1

Automatic Grade : Semi-Automatic

Cutting Method : Blade Cutting

Place of Origin : Guangdong, China

Material Compatibility : Leather, Synthetic Materials, Textile

Model Number : DF-624-12T

voltage : 220 V, 380 V

dimension(l*w*h) : 650*760*1530

Brand Name : DAFENG TECH

warranty : 1 Year

Worktable Size : 330x650mm

key selling points : Low Maintenance Cost

Weight (KG) : 380

Application : Shoe Making Leather Hydraulic High Speed Swing Arm Cutting Machine

Product name : Leather Hydraulic Swing Arm Cutting Machine

Key words1 : Hydraulic Swing Arm Cutting Machine

Key words2 : Swing Arm Cutting Machine

Name : Shoe Cutting Machine

MOQ : 1 set

Price : $830-890 / set

Contact Now

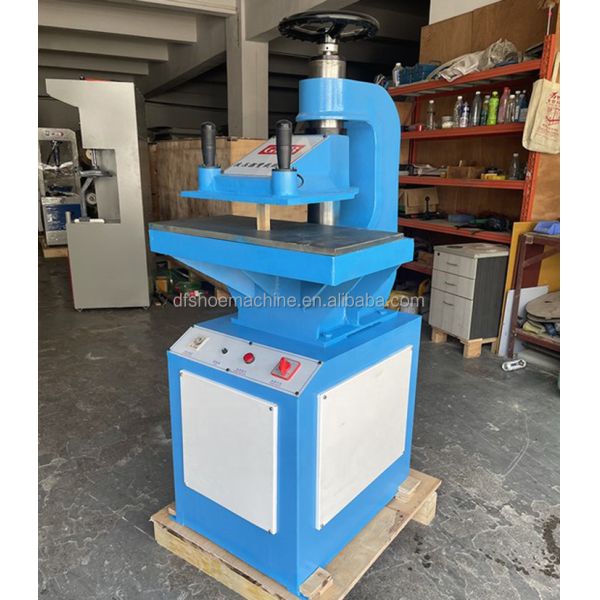

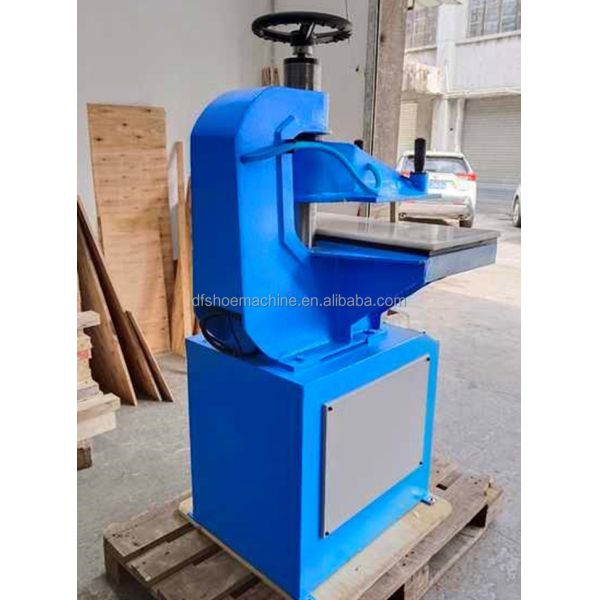

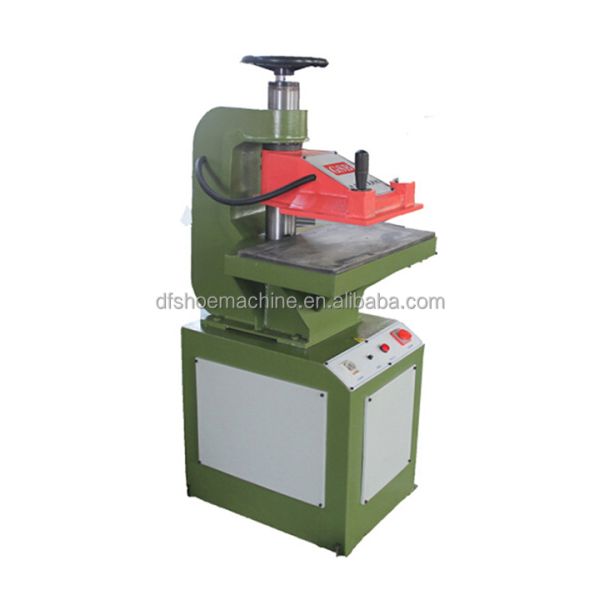

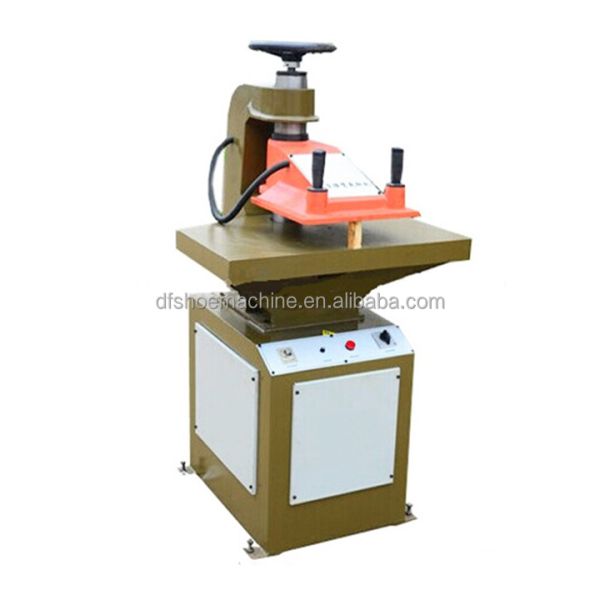

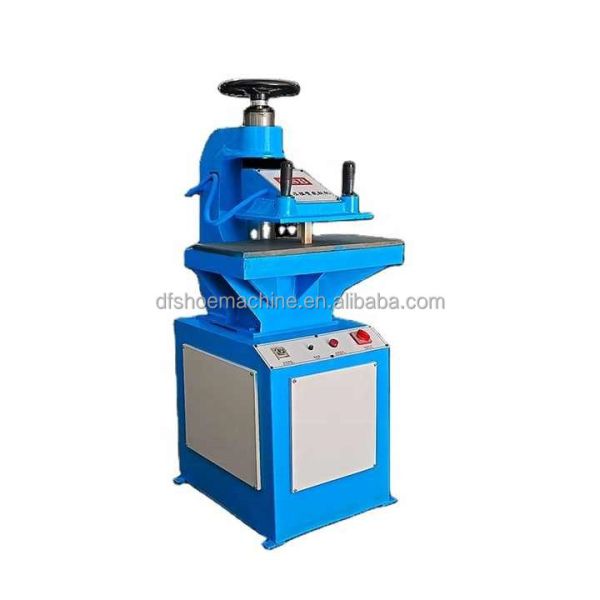

Details Images

Hydraulic Swing Arm Die Cutting Press Clicker Machine Efficient Leather Cutting Machines for Shoe Fabric Clicking Press

Products Description

Shoe Manual Hydraulic Leather Clicking Press Swing Arm Clicker Press Cutting Machine

Cutting machine features: 1, cutting force is mainly :300KN, 350KN can meet the production requirements of different customers. 2, cut in two sections, a section down, two sections of concentrated pressure, high pressure cut, this method The knife edge of the broken object is neat, which increases the service time of the machine and saves power consumption. 3, the use of four-column and crank synchronous balancing mechanism, so that the punching area of the machine uniform force. let The cut depth is the same for each cut position. 4, unique setting structure, with cutting tool and cutting depth setting, so that stroke adjustment is simple, Accurate. 5. Automatic slow cutting when the cutting plate contacts the cutting knife, so that there is no gap between the upper and lower layers of the cutting material Size error. 6. All sliding parts adopt oil supply automatic lubrication system to maintain the service time of the machine Precision. 7, with electromagnetic counting display, can correctly tell you the number of cuts, improve work efficiency. 8, the change of the structure of the machine in the design, so that users do not have to worry about oil leakage of the machine. 9, low noise, quiet action. 10, small motor power, low energy consumption. 11. Emergency stopping device is provided. 12.Optional infrared device 13, tool setting fast and accurate, easy to learn. Second, cutting machine application: This machine is suitable for leather processing industry, clothing industry, footwear industry, luggage industry, packaging industry, toy industry The stationery industry and the automotive industry use molding die for leather, rubber, plastic, cardboard, cloth, Cutting of foam, nylon, artificial leather, PVC board and other materials

Product Paramenters

Model	Max cutting force	Table area	Cutting atroke	Motor Power	Supply voltage	N.W	G.W
DF-624-12T	12T	650*330MM	50mm	0.75kw	3Ø380V/50Hz	350KG	380kg

Model number	DF-624-12T
Max cutting force	12T
Stroke adjustment	5-50mm
Distance between upper table and lower table	50-110mm
Press Board size	300x380mm
Cutting table size	330x650mm
Power	380v/220v, 50Hz/60Hz
Size of machine	6507601530mm
Package size and gross weight	750x860x1630mm 380kg

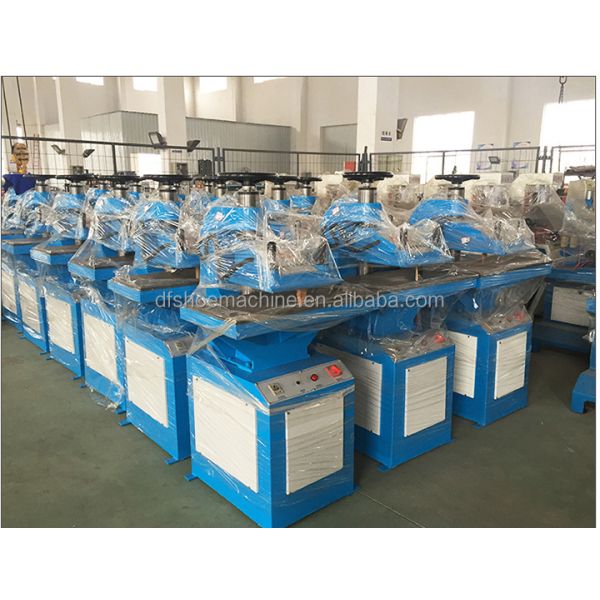

Product packaging
